KALPATARU COLOURS & CHEMICALS

B.B AXLE/MODEL KCC-5.5
B.B. CUP PHILLIPS TYPE/
MODEL KCC-5.6

34.8 X 24 TPI RH and LH threads.
B.B. CUP RALEIGH TYPE/
MODEL KCC- 5.7
34.8 X 26 TPI RH and LH threads.
B.B. CUP FRENCH TYPE/
MODEL KCC-5.8
35mm X 1mm pitch RH and LH threads
B.B. CUP ITALIAN TYPE/
MODEL KCC-5.9
36mm x 24 TPI RH & LH threads.
35mm x 24 TPI RH & LH threads.
FREEWHEEL 16/18/201
SINGLE SPEED
1/2" X 1/8"
/ MODEL KCC-6.1
Made of specified steel precesely
machined & heat treated full/half ball golden finish 1.370 x 24 BSCY or
M 34.7 x 1 threading. 16-18-20T

FREEWHEEL THREE SPEED/
MODEL KCC-6.2
1/2"x 1/8" or 1/2 x 3/22" Full Balls
Range : (a) 16-18-20T
(b) 16-19-22 T
FREEWHEEL SIX SPEED/
MODEL KCC-6.4
1/2" x 3/32" FULL STEEL BALL.
RANGE :
(a) 14-16-18-20-22-24T (14-24T)
(b) 14-16-18-20-24-28T (14-28T)
(c) 14-17-20-24-28-32T (14-32T)
FREEWHEEL SEVEN SPEED/
MODEL KCC-6.7
Range :
(a) 14-16-18-20-22-24-28 (14-28T)
(b) 14-16-18-20-24-28-32 (14-28T)
All black / golden finish.

ITALY CUT SINGLE SPEED/
MODEL KCC-7.1
For chain 1/2" x 1/8" also available for
1/2" x 3/32" chain. (a) 32T x 5" or 4"
(b) 36T x 5" or 4" (c) 40T x 6" or 5"
(d) 44T x 7" or 6 1/2" or 6" (e) 46T x 170
French thread.
BIRD HEAD CUT SINGLE SPEED/
MODEL KCC-7.2
For chain 1/2" x 1/8" only.
(a) 44T x 7" or 6 3/4" or 6 1/2"
(b) 46T x 7" or 6 3/4 or 6 1/2"
(c) 48T x 7" or 6 3/4 or 6 1/2"
JAPAN CUT SINGLE SPEED/
MODEL KCC-7.3
For chain 1/2" x 1/8" Also available for
1/2" x 3/32" chain.
(a) 28T x 5" or 4" (b) 32T x 5" or 4"
(c) 36T x 5" or 4" (d) 40T x 6" or 5"
(e) 44T x 7" x 6 1/2" or 6"
(f) 46T x 7" x 6 1/2" or 6"
(g) 48T x 7" x 6 3/4" or 6 1/2"
(h) 52T x 7" or 6 3/4" or 6 1/2"
with or without holes to specify.
PHOENIX CUT SINGLE SPEED
/MODEL KCC-7.4
For chain 1/2" x 1/8" only.
(a) 44T x 6 1/2" or 7"
(b) 48T x 7".
DOUBLE CHAINWHEEL & CRANK COTTERLESS TYPE FOR MULTISPEED/MODEL KCC-7.5
powder coated mat/glosy finish black.
(a) 40/48T x 170mm
(b) 40/53T x 170mm
with/without chainguard to specify.

TRIPLE CHAINWHEEL & CRANCK FOR MULTISPEED BICYCLE
MODEL KCC-7.6
(a) 28/38/48T x 170mm BCP Finish/black.
(b) 28/38/52T x 170mm BCP Finish/black.
with/without chainguard to specify.
COTTER PIN/MODEL KCC-7.7
(a) 9.5 shank dia 42mm length.
(b) 9.00 x 41mm (c) 8.5 x 41mm
complete with nut and washer CP/UCP finish.
CHAIN ADJUSTER/MODEL KCC-8.1
Closed and open ends suitable for 9.52
(3/8"), 11mm & 12mm Hub Axles complete with nuts and cap washer . Z.P. Finish.
ROLLER CHAIN 1/2" X 1/8"
TECHNICAL DATA OF CHAINS/
MODEL KCC-8.2
NOTE : Also available 1/2" x 3/16" Roller chain and available  in
3/32" x 1/8" in any link.
FULL CHAIN COVER/
MODEL KCC-8.3
PEDAL FINE DIAMOND WITH REFELECTOR/MODEL KCC-9.1
3", 3 1/2",4" Fine diamond black rubber plain plates.
PEDAL BOW TYPE/
MODEL KCC-9.2
3 1/4" Fine diamond black curved rubber with reflector bend edge plates.
PEDAL BIG DIAMOND/
MODEL KCC-9.3
4" Black  rubber winged plates with reflector.
PEDAL SOLID FULL RUBBER/
MODEL KCC-9.4
Full moulded rubber block in black colour Axle ZP / auto black
14mm x 1.25p.
STEEL PEDAL WITH REFLECTOR/ MODEL KCC-9.5
All steel rat trap design with reflector
95mm size BCP finish axle Z.P. / Black
For BMX, one  piece  plastic body 6 holes with reflectors.
MODEL KCC-9.6
Made  of  one  piece  plastic  body  with reflector , red  body  colours  available
MODEL KCC-9.7
BMX  pedal,  one  piece  plastic  body four  holes , blue,  red,  black.
MODEL KCC-9.8
SLR TYPE WITH REFLECTOR/
MODEL KCC-18.2
Size : 26" x 1 3/8".
BLACK CHANNEL/
MODEL KCC- 18.1
Channel type black finish. Wheel
sizes: 28" x 1 1/2". With reflector colour on order.
MUDGUARD BMX/
MODEL KCC-17.2
U shaped  round chain  stays and plate fastening width 60mm height - 23mm.
Wheel size : 20", 16".
MUDGUARD PHILLIPS TYPE/ RALEIGH TYPE./ MODEL KCC-17.1
For roadster, deep dome section single stay fastened.
wheel size: 20" 26" 24" 28"
LG/MODEL KCC-13.9
Suitable for low grauity (Luggage carrier) Bike size 16" x 16g with box crown.
Size : 20 x 2 x 1 3/4
PHILLIPS TYPE/
MODEL KCC-13.4
25.4 x 24 TPI, box crown coloumn length to order. Available for wheel sizes.
(a) 28 x 1 1/2"    (b) 26 x 1 1/2"
(c) 26 x 1 1/2"     (d) 24 x 1 1/2"
(e) 20 x 1 3/8"    (f) 20 x 1 3/4"
RALEIGH TYPE/
MODEL KCC-13.5
25.4 x 26 TPI tubular crown coloumn length to order.
28 x 1 1/2"-24"      28 x 1 1/2"-22
SLR MODEL KCC-13.6
25.4 x 24 / 26 TPI coloumn threadings tubular crown, suitable hole for caliper brakes wheel size 26 x 1 3/8".
DEMI BALOON/ MODEL KCC-13.7
25 x 1mm pitch coloumn threadings. Box crown with / without box crown wheel
Size : 650 x 38 x 41mm    700 x 38 x 41mm
MTB/ MODEL KCC- 13.8
For light roadster bikes, Box crown pressed sheet ends coloumn threadings
25mm x 1mm wheel size 26 x 2.125
24 x 2.125    20 x 2 x 1 3/4.

B.B. SHELL PHILLIPS TYPE/
MODEL KCC-4.2
For oval chain stays77 mm length & threading 26 TPI RH & LH 12G.
TOP LUGS/
MODEL KCC-4.3

Pressed steel reamed bore with holes for pin self finish.
BOTTOM LUGS/
MODEL KCC-4.4

Pressed steel reamed bore in self finish with / without cut.
SEAT LUGS /
MODEL KCC-4.5
Pressed steel reamed bore with holes self finish with nuts.
HANDLE PHILLIPS TYPE/
MODEL KCC-12.1
Raised pattern with double levers complete with expander bolt for side pull brakes.
HANDLE RL TYPE/
MODEL KCC-12.2
Raised pattern with double levers complete with expander bolt for centre pull brakes black grips.
HANDLE NRR/MODEL KCC-12.3
Raised with double levers screwed in stud attachment.
HANDLE SLR/
MODEL KCC-12.4
For lightweight, raised handle bar w/o lever c.p. finish.
HANDLE BMX/
MODEL KCC-12.5
With cross bar type light alloy/steel c.p. finish.
HANDLE MTB/MODEL KCC-12.6
Steel 2.2 dia fixed/seperated stem c.p./ Black Finish.
RALEIGH TYPE/
MODEL KCC-13.1
S/O 5Pcs. Steel ball size 3.97 (5/32") threading 25.4 x 24TPI or 25.4 x 24 TPI.
FRENCH TYPE/MODEL KCC-13.2
S/O 6Pcs. Ball retainer 3.97 (5/32")
0.25 x 1mm threading.
PHILLIPS TYPE/
MODEL KCC-13.3
S/O 5Pcs. Steel ball size 3.175 (1/8")
or 3.97 (5/32") threadings 25.4 x 24 TPI.
PH / TYPE OPEN ENDS/ MODEL KCC - 10.1
RALEIGH TYPE MODEL KCC - 10.2
BMX OVAL TYPE MODEL KCC - 10.3
HUB MULTISPEED /MODEL KCC - 10.4
PHILLIPS TYPE / MODEL KCC - 10.7
RALEIGH TYPE / MODEL KCC - 10.8
MULTI SPEED HUB AXLE / MODEL KCC - 10.9
A' MODEL HUB AXLE / MODEL KCC - 10.10
HUB CUPS / MODEL KCC - 10.11
HUB CONE PHILLIPS TYPE/ MODEL KCC - 10.12
PHILLIPS TYPE / MODEL KCC - 14.1 Side pull brakes, suitable for roadster Bicycles.
RIM BRAKE BALOON TYPE (PHILLIPS) / MODEL KCC - 14.2 Suitable for wider tyres, side pull type.
CALIPER BRAKES SLR / MODEL KCC - 14.3 Steel made, side pull type BCP finish sizes 65, 85mm.
CALIPER BRAKES MTB/BMX/ MODEL KCC -14.4 Steel made, side pull type Nut levers BCP finish sizes 75-95mm 72-90mm
WESTWOOD PATTERN / MODEL KCC - 15.1
ENDRIC PATTERN / MODEL KCC - 15.2
WESTRIC PATTERN / MODEL KCC - 15.3
SPOKES / MODEL KCC - 16.6
TUBE / MODEL KCC - 16.1 Natural Rubber with dunlop / french/ american valves jointed/ seamless black colour.
TYRES / MODEL KCC - 16.2 Made from Natural rubberized card fabric casing wired on tyres for Roadster & SLR Bicycles in 2 Ply rating in various thread designs in black colour.
SADDLE 90*3 FULL ROADSTER / MODEL KCC - 11.1
RANGER TYPE / MODEL KCC - 11.2
SADDLE SLR / MODEL KCC - 11.3
SADDLE PVC / MODEL KCC - 11.4
TOURING SADDLE / MODEL KCC - 11.5
SADDLE BMX / MODEL KCC - 11.6
SEAT PILLAR QUICK RELEASE / MODEL KCC - 11.7
SEAT PILLAR MODEL KCC - 11.8
HANDLE STEM / MODEL KCC - 11.9
HANDLE EXPANDER BOLT / MODEL KCC - 11.10

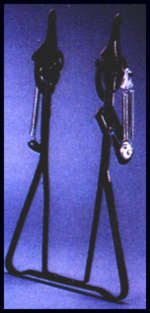

FULL STAND MODEL KCC - 19.1 For heavy cycles kick up type enamel finish, spring C.P.,fitted to chain stay.

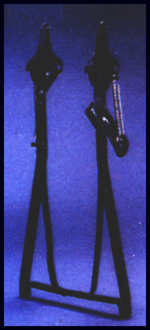

FULL STAND MODEL KCC - 19.2 For Gents roadster with kick up lock two/ four spring finish black enamelled.

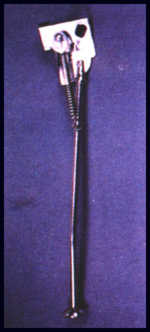

SIDE STAND FOR ROADSTER MODEL KCC - 19.3

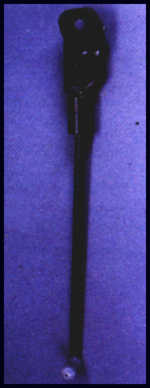

SIDE STAND MODEL KCC - 19.4

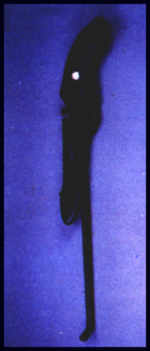

SIDE STAND PISTOL TYPE MODEL KCC - 19.5
BELL DINKY / MODEL KCC - 20.1 Steel top CP, Pinion type Z.P. base with two screw clips. Size : 56 MM.
RING LOCK / MODEL KCC - 21.1 For Roadster bicycles 4 - 5/8" diameter clip fastening enamel finish.
MUDGUARD & SPOKE REFLECTORS / MODEL KCC - 22.1 Colour red, yellow, white.
FRENCH VALVE MOULDED TUBE KCC - 6201 (Set of 4 pcs.)
FRENCH VALVE JOINTED TUBE KCC - 6202 (Set of 7 pcs.)
FRENCH VALVE ELIPTICAL RUBBER BASE KCC - 6203 (Set of 4 pcs.)
AMERICAN VALVE (FULL THREAD) KCC - 6204 (Set of 4 pcs.)
AMERICAN VALVE (HALF THREAD) KCC - 6205 (Set of 4 pcs.)
GERMAN VALVE KCC - 6206 (Set of 5 pcs.)
ITALIAN VALVE KCC - 6207 (Set of 4 pcs.)
DUNLOP VALVE FOR JOINTED TUBE KCC - 6208 (Set of 7 pcs.)
DUNLOP VALVE FOR MOULDED TUBE KCC - 6209 (Set of 5 pcs.)

GENTS ROADSTER PHILLIPS TYPE/ KCC-2.1
Frame with frame cups, B.B Cups, set of 3 pieces.
SLR FRAME / MODEL KCC-2.2
Frame with frame cups, B.B Cups, set of 3 pieces.
CHAIN STAYS FOR RALEIGH TYPE/
MODEL KCC- 3.2

Fabricated to size with oval tubes with / without paint
B.B. SHELL RALEIGH TYPE/
MODEL KCC-4.1
For round chain stays 67 mm length 10/ 12G Raw finish threading 24 TPI RH & LH.
SEAT STAY PHILLIPS TYPE WITH ROUND STAYS/
MODEL KCC-3.1
AXLE QUICK RELEASE/ MODEL KCC - 10.6
HUB QUICK RELEASE/ MODEL KCC - 10.5
